VERSATILE EQUIPMENT
Customizable Cutting Machines
GenMac offers a range of high-quality cutting machines that are designed to meet the needs of food manufacturers and processors. Our cutters use harp and wire style cutting dies that all produce consistent and accurate cuts, ensuring that your products are always of the highest quality.
Our harp/wire style cutting machines are versatile and can be used for a wide range of applications, including cutting cheese, butter, tofu, certain types of dough, softer types of soaps and chocolate, even some softer, pre-processed meats such as ham.
Whether you need to cut products into cubes, sticks, slabs, bars, loaves, etc. GenMac can help. These types of portions are primarily used for cutting into smaller sellable sizes (loaves, chunks, sticks, etc.)
The Model 3005-LD Tu-way (lowered discharge) is specifically built around the standard 40-pound cheese block format that we see here in the USA. Such blocks are 14” X 11” X 7” in height. This 7” height is the magic number because the “throat” of the machine only accepts about 8” maximum block height. We keep the cutting action shorter and faster by sizing the throat to match these standard blocks. This keeps cycle time to a minimum, and therefore efficiencies are gained in output and profit for the end user.
The Model 3005 Tu-Way looks the same but it has a “throat” that is about 5” taller and can accept much taller blocks of food product. For example, butter tends to be in 50# or 55# blocks which often have dimensions of 12” X 12” X 12” square. These much taller blocks physically would not fit in the 3005-LD.
Generally speaking, the Model 3005 is the way to go if you have a very tall product like we tend to see with butter, tofu, date paste, soft shea butter. Etc. There are some cheeses that are done in this taller cutter, but those tend to be special size imported blocks. The Model 3005-LD Tuway tends to be better for shorter products.
With our cutting equipment you can improve efficiency, reduce waste, and increase productivity in your operations. All manuals are available online.

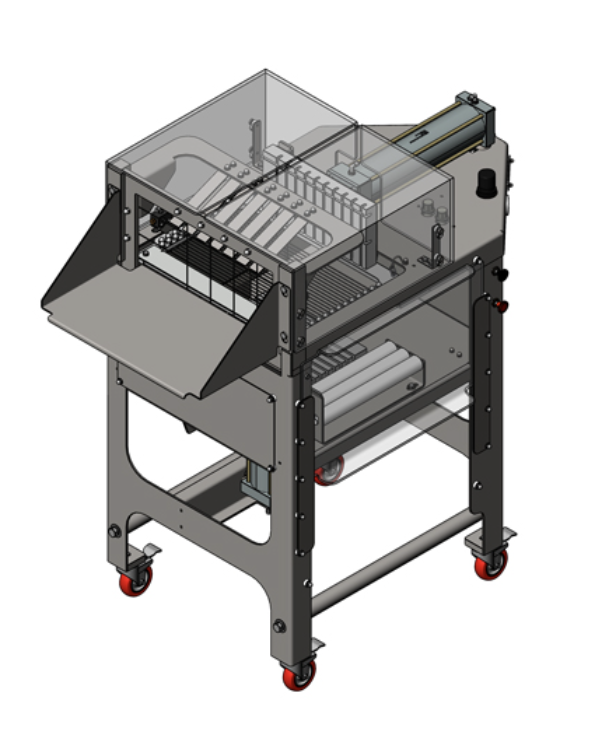

Animated renderings of Model 3005 LD Tuway.
MODEL 3005-LD TU-WAY
FEATURES
Cuts cheese blocks or other wire-cuttable products into uniform portions for retail purposes or further processing, such as dicing, shredding, melting, or blending
Accurately portions cheese blocks up to 7″ x 11″ x 14″
Automatic feed and discharge
Cuts up to one 40# block per minute, can be faster for certain soft products.
Two direction cutting – vertical and horizontal.
Harps are easily removed for cleaning and wire change.
Comes with an adjustable speed control for each stage.
100% Operated by Air.
All stainless steel frame and harps.
Machine footprint – 56″ tall x 56″ long x 30″ wide.
